From Hand Sketch to DXF/PDF

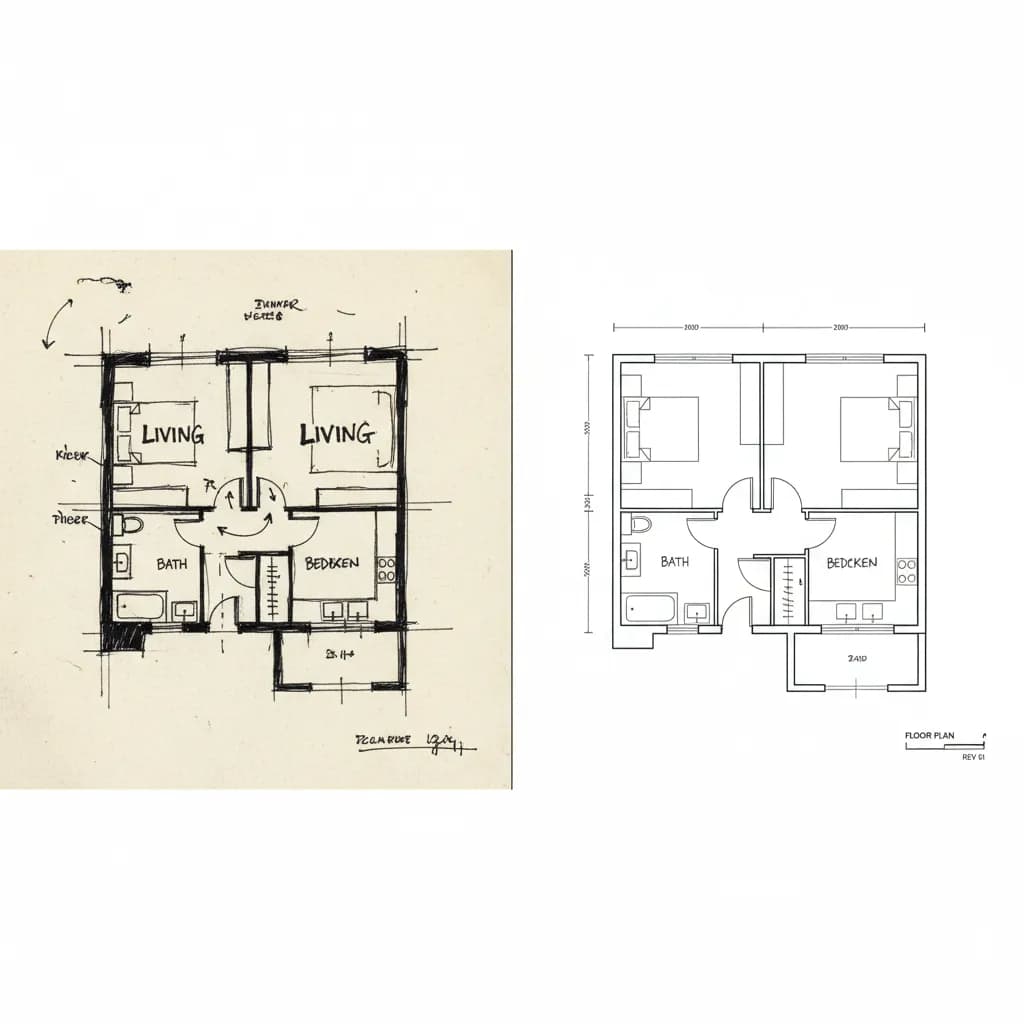

Hand sketch converted into a clean plan suitable for DXF/PDF export
Single example: hand sketch → clean export-ready plan.

Trace your design intent from hand sketch to shareable formats. Keep proportions consistent and label rooms clearly before export.

  • Use a contrasting pen for clear edges.
  • Label rooms and approximate dimensions to improve downstream tracing.
  • Export at 300DPI for crisp PDF/DXF.
